SBR Rubber (Styrene Butadiene Rubber)

High abrasion resistance and aging resistance for industrial applications

View Specifications

SBR Rubber - Black and Red

SBR Rubber (Styrene Butadiene Rubber) is a widely used synthetic elastomer in industry due to its excellent cost-benefit ratio and good mechanical properties. Available in black and red versions, this material offers high abrasion resistance, good aging resistance, and flexibility in various applications.

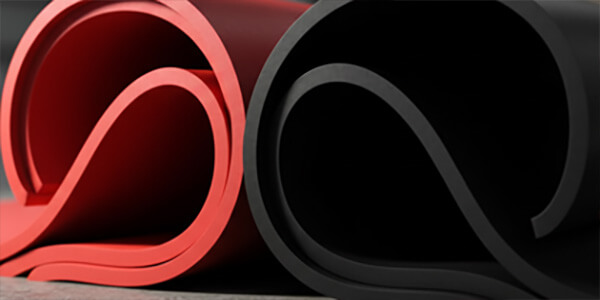

Black and Red SBR Rubber - Everest Group

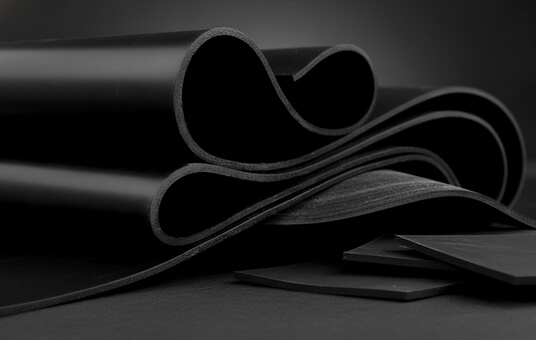

Black SBR Rubber

Black SBR Rubber is ideal for general applications requiring good mechanical strength and durability. With 60-65 Shore A hardness, it offers a perfect balance between flexibility and resistance.

This material exhibits excellent abrasion and tear resistance, making it suitable for gaskets, seals, coatings, and components that need to withstand demanding working conditions.

Its composition ensures good performance against chemicals, acids, and alkalis, maintaining its properties within a temperature range of -20°C to 90°C.

Technical Specifications - Black SBR rubber

**Physical Properties**
Parameters	Method	Specifications
Shore A Hardness	ASTM-D2240	60 - 65
Tensile Strength (psi)	ASTM-D412	350 psi minimum
Elongation %	ASTM-D412	375 minimum
Tear Resistance (KN/m)	ASTM-D624	16 minimum
Temperature Range (°C)	ASTM-D573	-20°C to 90°C
Acoustic Insulation Factor	-	High
Vibration Absorption	-	Excellent
Impact Absorption	-	High

**Chemical Properties**
Substances	Method	Specifications
Chemical Product Resistance	ASTM-D471	Good
Acid and Alkali Resistance	ASTM-D471	Good
Alcohol Resistance	ASTM-D471	Very Good

**Presentation**
Sheet	Roll	Roll
1m x 1m, in thicknesses from 1/16" to 3"	1m x 10m, in thicknesses from 1/16" to 5/16"	1m width x 5m length, in thicknesses from 3/8" to 5/8"

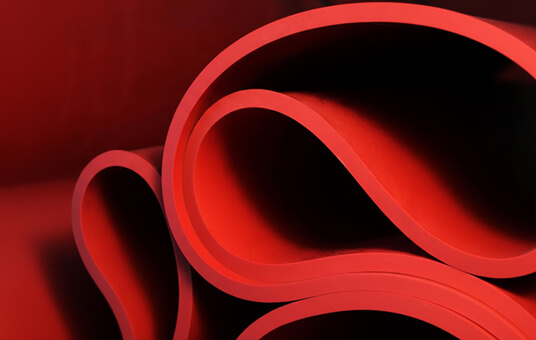

Red SBR Rubber

Red SBR Rubber offers higher hardness (Shore A 70-75) and tensile strength compared to the black version. It is ideal for applications requiring greater rigidity and durability.

With a minimum tensile strength of 550 psi, this material is perfect for structural components, high-pressure gaskets, and applications needing greater mechanical strength.

It maintains the excellent vibration and impact absorption properties of SBR, while also offering good chemical and thermal resistance within the same operating range.

Technical Specifications - Red SBR rubber

**Physical Properties**
Parameters	Method	Specifications
Shore A Hardness	ASTM-D2240	70 - 75
Tensile Strength (psi)	ASTM-D412	550 psi minimum
Elongation %	ASTM-D412	325 minimum
Tear Resistance (KN/m)	ASTM-D624	17 minimum
Temperature Range (°C)	ASTM-D573	-20°C to 90°C
Acoustic Insulation Factor	-	High
Vibration Absorption	-	Excellent
Impact Absorption	-	Alta

**Chemical Properties**
Substances	Method	Specifications
Chemical Product Resistance	ASTM-D471	Good
Acid and Alkali Resistance	ASTM-D471	Good
Alcohol Resistance	ASTM-D471	Very Good

**Presentation**
Sheet	Roll	Roll
1m x 1m, in thicknesses from 1/16" to 3"	1m width x 10m length in thicknesses from 1/16" to 5/16"	1m width x 5m length in thicknesses from 3/8" to 5/8"

Main Applications

Industrial sectors where SBR Rubber makes the difference

Gaskets and Seals

Sealing in industrial equipment, machinery, and hydraulic systems with excellent compression resistance.

Automotive Components

Manufacturing of parts, supports, and components requiring abrasion and vibration resistance.

Coatings

Surface protection in conveyor belts, rollers, and industrial equipment against wear.

Key Benefits of SBR Rubber

Competitive advantages of Styrene Butadiene Rubber

High Abrasion Resistance

Excellent performance in applications with continuous friction and wear.

Good Flexibility

Maintains elastic properties across a wide temperature range.

Cost-Effective

Excellent cost-benefit ratio for general industrial applications.

Chemical Resistance

Good performance against acids, alkalis, and common chemical products.

Acoustic Insulation

Excellent properties for reducing noise and vibrations in industrial equipment.

Color Availability

Options in black and red for different aesthetic and application requirements.

Need SBR Rubber for your project?

Contact us for technical advice and a personalized quote according to your specific requirements for color, hardness, and presentation.

Request Quote
